Here are the general steps to flash a 6531 device using CM2 (Cyclone Box 2):

Requirements:

1. CM2 Box (Cyclone Box 2).

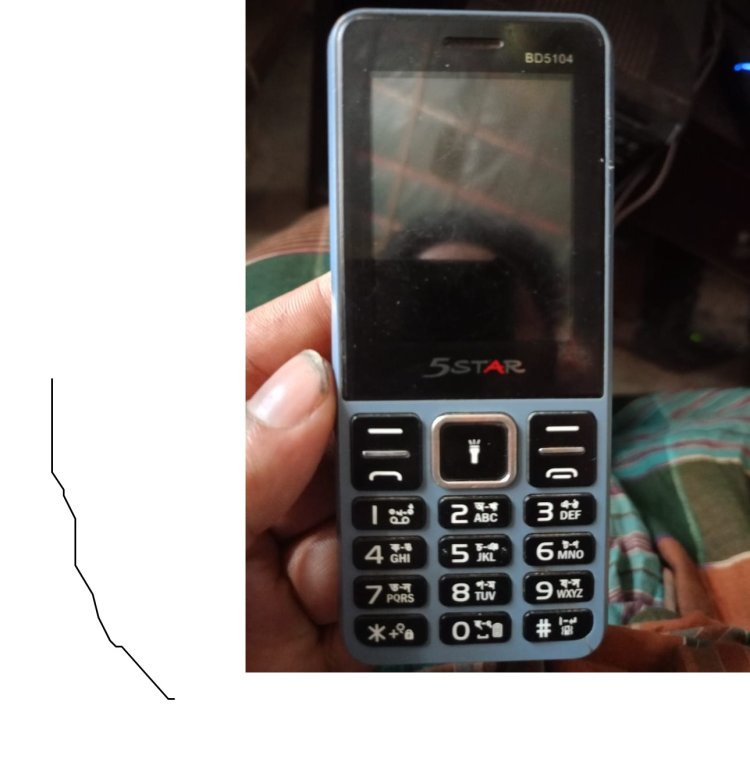

2. A 6531 device that you want to flash.
3. CM2 Software installed on your computer.
4. The correct firmware for the device you're flashing (usually in .bin or .pac format).
5. USB cable to connect the device to your computer.

Steps to Flash the Device:

1. Install CM2 Software:

   • Make sure you have the latest version of the CM2 software installed on your computer. You can download it from the official Cyclone Box website.

2. Connect the Device to the Computer:

   • Power off the 6531 device.
   • Use a compatible USB cable to connect the device to your computer.

3. Launch CM2 Software:

   • Open the Cyclone Box 2 (CM2) software on your PC.

4. Select the Model:

   • In the CM2 software, locate the "MTK" (MediaTek) section (assuming the device uses an MTK 6531 chipset).
   • Select the appropriate device model or chipset (MTK 6531).

5. Load Firmware:

   • Find the firmware file you intend to flash. This is usually in the format of .bin or .pac files.
   • Load the firmware into CM2 software by selecting the "Select Firmware" option.

6. Enter Flash Mode on the Device:

   • Some devices need to be in a flash mode (like Preloader mode). Follow the instructions from the CM2 software for entering the device into this mode. You might need to press a key combination or use the Volume Down + Power button during the connection.

7. Start Flashing:

   • Once the device is in the correct mode and the firmware is loaded, press the "Start" or "Flash" button in the CM2 software.
   • The software will begin the flashing process, which may take a few minutes. Ensure the connection is not interrupted during this time.

8. Wait for the Process to Complete:

   • When the flashing process is complete, you will see a "Done" or success message in the CM2 software.
   • At this point, you can safely disconnect the device from the computer.

9. Reboot the Device:

   • Power on the device, and it should boot with the new firmware. You may need to set it up as a new device.

Troubleshooting:

• If the device doesn't enter Flash Mode, ensure that the drivers are installed correctly.
• Double-check the firmware compatibility with your device.
• If the flashing process fails, re-check the USB cable or port, and try again.
